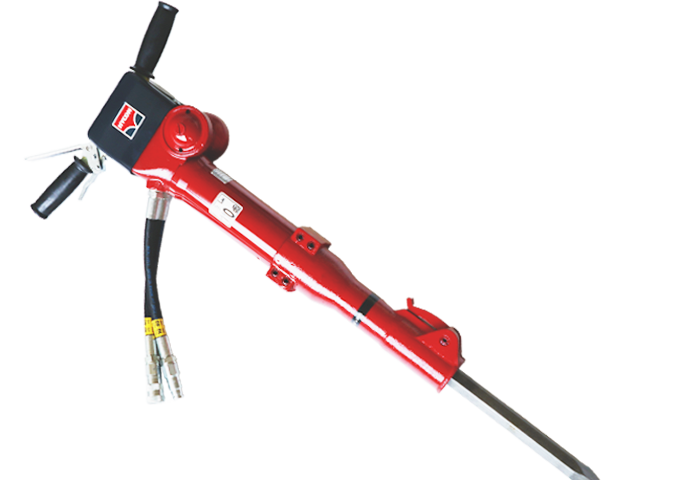

Handheld Hydraulic Breaker HH35



HYCON HH35 is exceptionally strong coping with all jobs requiring extreme power. The breaker has an extra accumulator, which adds even more power, and it hits more than twice as hard as the HH20 and outperform any other 45 kg breaker in the market - no matter if pneumatic or hydraulic.

It is designed for breaking hard concrete, asphalt, ramming jobs etc. HH35 comes standard with the HYCON vibration-reduced handle.

It is especially used in contracting, demolition and road work industries.

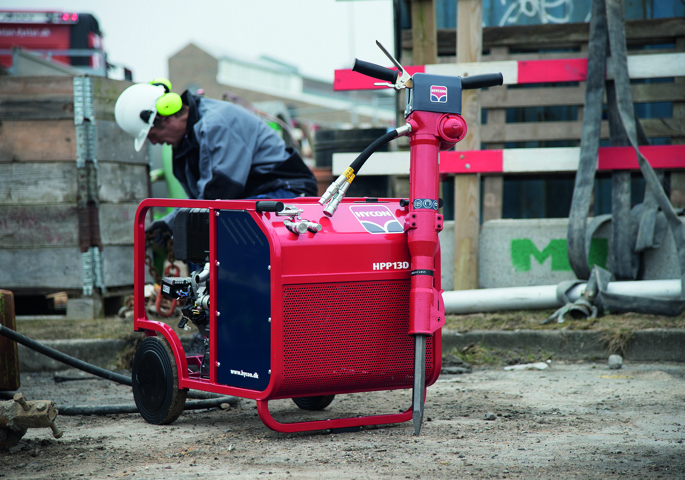

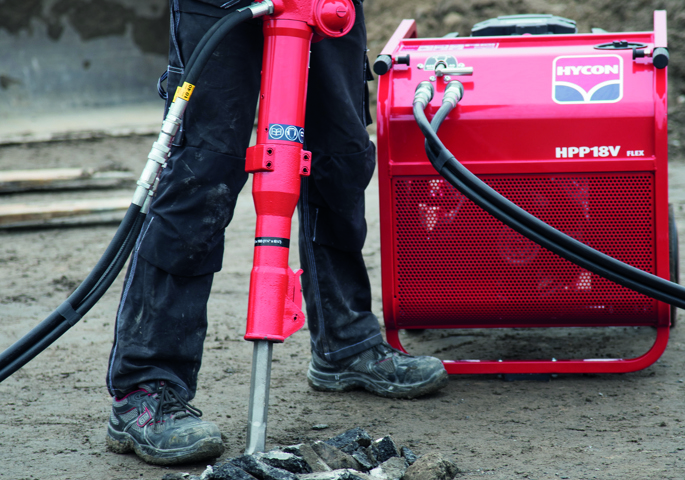

Standard tool size is hex 32x160 mm. The breaker can be connected to the HYCON power packs and other hydraulic power sources.

It is available both as 30 and 40 l.p.m. models.

Technical data

Item no. hex 28x160 mm, 30-40 l.p.m.

1010135

Item no. hex 32x152 mm, 30-40 l.p.m.

1010035

Item no. hex 32x160 mm, 30-40 l.p.m

1010235

Weight, kg

29.4

Oil flow, l.p.m.

30-40

Working pressure, bar

130

Max. pressure, bar

160

Blow frequency, 1/min. - 30/40 l.p.m.

1100/1440

Blow energy, J

130

Noise level 1 m LPA dB

99

Noise level LWA dB

111

Vibration level (3 axis) m/s2

10.7

Tool size, mm hex - 30/40 l.p.m.

28/32
